• Prerequisites
• Connect Windsurf to the Connect AI MCP

Windsurf is an AI-powered integrated development environment (IDE) developed by Codeium. It combines intelligent coding assistance with a collaborative Flow system for seamless human-AI interaction.

Prerequisites

Before you can configure and use Windsurf with Connect AI, you must first do the following:

• Install the Windsurf IDE (MCP integrations do not support extensions or plugins).

• Connect a data source to your Connect AI account. See Sources for more information.

• Generate a Personal Access Token (PAT) on the Settings page. Copy this down, as it acts as your password during authentication.

• Base64-encode your Connect AI credentials in the following format: Base64("email:PAT").

Connect Windsurf to the Connect AI MCP

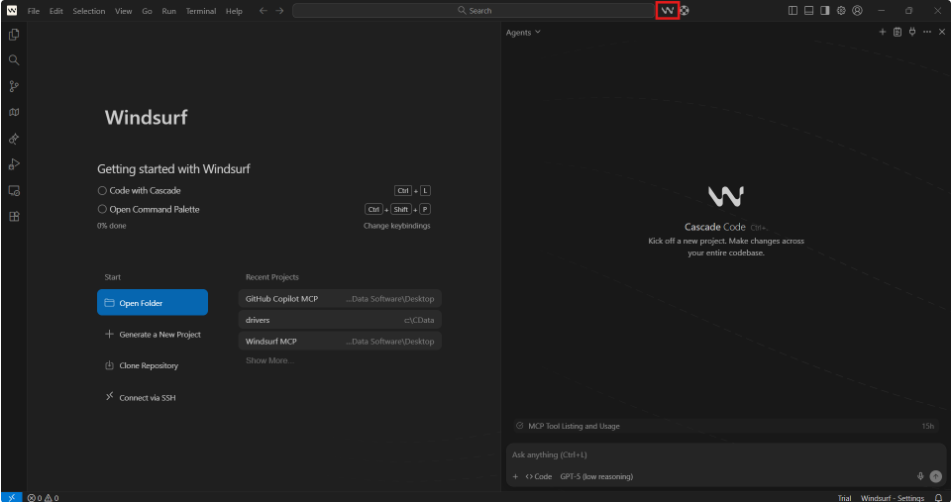

1. Open Cascade Code Chat Assistant, either by pressing CTRL+L or by clicking the button highlighted below.

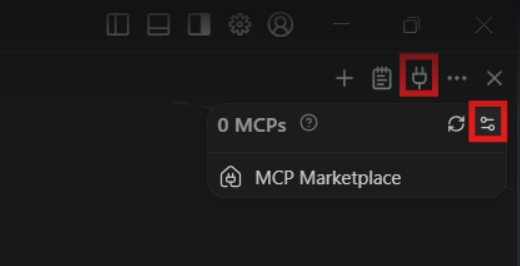

2. In Windsurf, open the MCP configuration file, mcp_config.json, which is created during installation. The default path is C:\Users\<YourUsername>\.codeium\windsurf\mcpconfig.json. You can also open it directly from the IDE by clicking the MCPs button in the chat dialog, and then selecting the Config icon, as shown below:

3. Copy and paste the following into the mcp_config.json file. Replace the authorization header with the Base64-encoded credentials obtained in the prerequisites.

    {
    "mcpServers": {
        "cdata-mcp": {
        "serverUrl": "https://mcp.cloud.cdata.com/mcp",
        "headers": {
            "Authorization": "Basic YOUR_BASE64_ENCODED_EMAIL:PAT" //Authorization obtained in the prerequisites
        }
        }
    }
    }

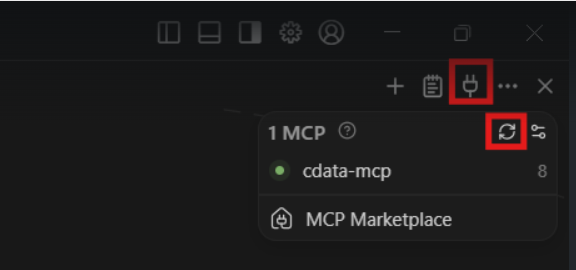

4. Start the MCP server by clicking the MCPs button in the chat dialog and clicking the Refresh button.



   Once the MCP server is started, a green indicator appears.

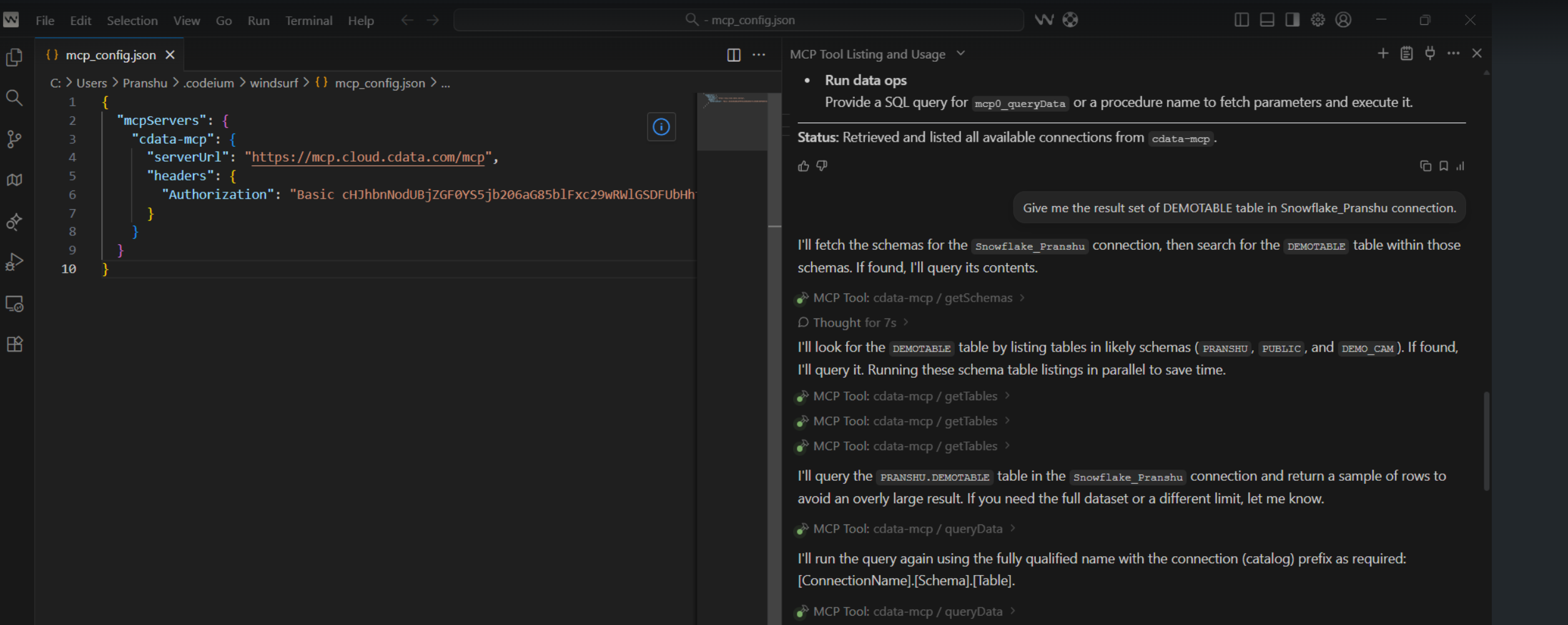

5. You can now chat with the assistant. Windsurf lists the available tools, the connections, and a result set of a given table of a given connection.
