LangGraph
LangGraph
LangGraph is a framework for developing applications powered by large language models (LLMs).
Prerequisites
Before you can configure and use LangGraph with Connect AI, you must first do the following:
-
Connect a data source to your Connect AI account. See Sources for more information.
-
またSettings ページでPersonal Access Token(PAT)を生成する必要があります。PAT をコピーし、認証時にパスワードとして使用します。 またOAuth JWT bearer token を生成する必要があります。PAT をコピーし、認証時にパスワードとして使用します。
-
Obtain an OpenAI API key: https://platform.openai.com/.
-
Make sure you have Python >= 3.10 in order to install the LangChain and LangGraph packages.
Create the Python Files
-
Create a folder for LangGraph MCP.
-
Create a Python file within the folder called
langraph.py. -
Paste the following text into
langraph.py. You need to provide your Base64-encoded Connect AI username and PAT (obtained in the prerequisites).MCP_AUTHshould be set to"OAUTH_JWT_TOKEN", not Base64-encodedEMAIL:PAT. Also, substituteBearerforBasicinAuthorization.
"""
Simple LangGraph + MCP + OpenAI Integration
Pure LangGraph implementation without LangChain
"""
import asyncio
from typing import Any
from langgraph.graph import StateGraph, START, END
from langgraph.prebuilt import create_react_agent
from langchain_mcp_adapters.client import MultiServerMCPClient
from langchain_openai import ChatOpenAI
from langchain_core.messages import BaseMessage, HumanMessage, AIMessage, ToolMessage
from typing_extensions import TypedDict, Annotated
import operator
class AgentState(TypedDict):
"""State for the LangGraph agent"""
messages: Annotated[list[BaseMessage], operator.add]
async def main():
# Configuration
MCP_BASE_URL = "https://mcp.cloud.cdata.com/mcp"
MCP_AUTH = "YOUR_BASE64_ENCODED_EMAIL:PAT"
OPENAI_API_KEY = "YOUR_OPENAI_API_KEY"
# Step 1: Connect to MCP server
print("🔗 Connecting to MCP server...")
mcp_client = MultiServerMCPClient(
connections={
"default": {
"transport": "streamable_http",
"url": MCP_BASE_URL,
"headers": {"Authorization": f"Basic {MCP_AUTH}"} if MCP_AUTH else {},
}
}
)
# Step 2: Load all available tools from MCP
print("📦 Loading MCP tools...")
all_mcp_tools = await mcp_client.get_tools()
tool_names = [tool.name for tool in all_mcp_tools]
print(f"✅ Found {len(tool_names)} tools: {tool_names}\n")
# Step 3: Initialize OpenAI LLM
print("🤖 Initializing OpenAI LLM...")
llm = ChatOpenAI(
model="gpt-4o",
temperature=0.2,
api_key=OPENAI_API_KEY
)
# Step 4: Create LangGraph agent
print("⚙️ Creating LangGraph agent...\n")
agent = create_react_agent(llm, all_mcp_tools)
# Step 5: Create the graph
builder = StateGraph(AgentState)
builder.add_node("agent", agent)
builder.add_edge(START, "agent")
builder.add_edge("agent", END)
graph = builder.compile()
# Step 6: Run agent with your query
user_prompt = "List down the first record from the Activities table from ActCRM1"
print(f"❓ User Query: {user_prompt}\n")
print("🔄 Agent is thinking and using tools...\n")
initial_state = {
"messages": [HumanMessage(content=user_prompt)]
}
result = await graph.ainvoke(initial_state)
# Step 7: Print final response
final_response = result["messages"][-1].content
print(f"✨ Agent Response:\n{final_response}")
if __name__ == "__main__":
asyncio.run(main())
Install the LangChain and LangGraph Packages
Run pip install -U langgraph langchain langchain-openai langchain-mcp-adapters typing-extensions in your project root terminal.
Run the Python Script
-

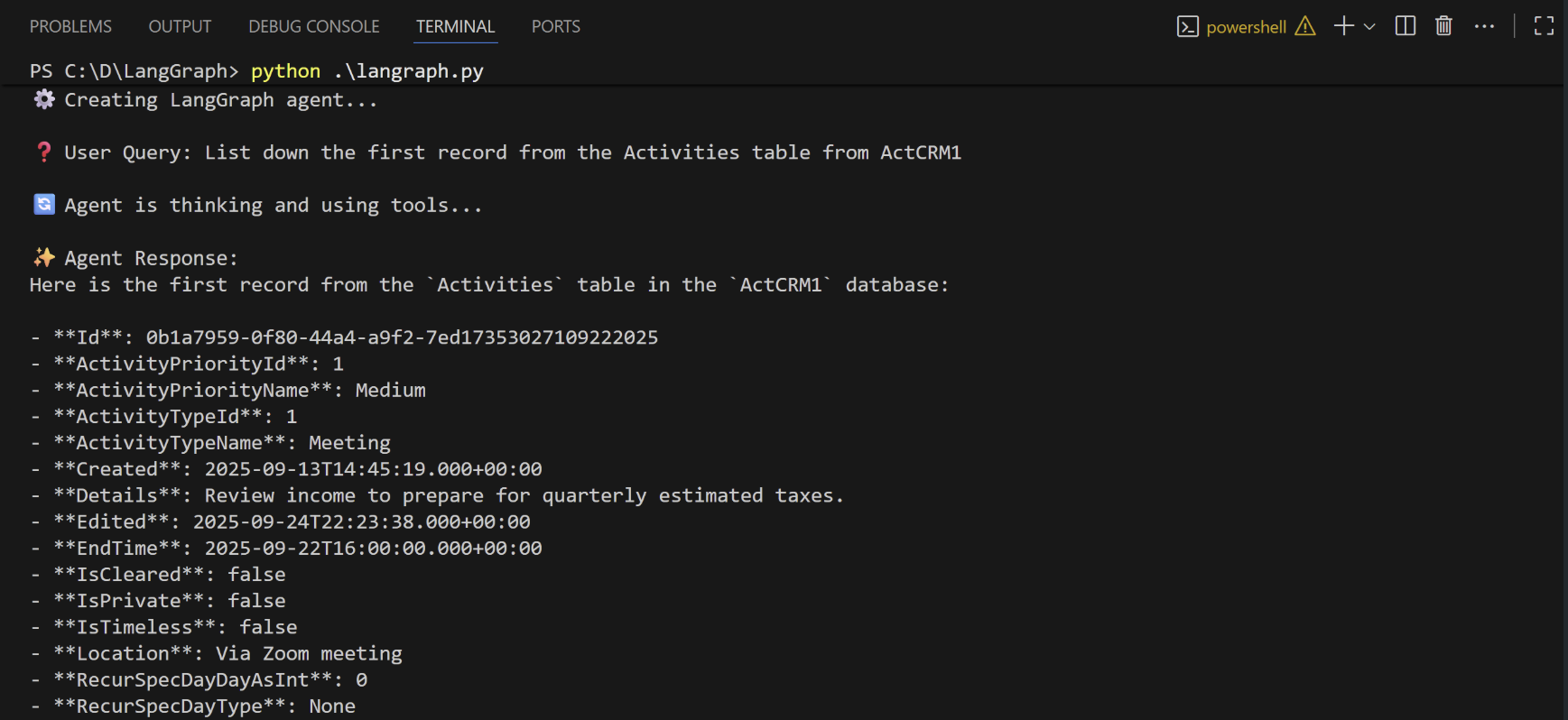

When the installation finishes, run
python langraph.pyto execute the script. -
The script discovers the Connect AI MCP tools needed for the LLM to query the connected data.
-
Supply a prompt for the agent. The agent provides a response.
